Computer Servers
Showing 26–29 of 29 results
-
Networking Products, Computer Servers
MSI MAG A650BN PCIE5 III 650W Power Supply (306-7ZPTY18-HD8)
Technical Specifications
Feature Specification Details Model SKU / Part Number MSI MAG A650BN PCIE5 III 650W Power Supply (306-7ZPTY18-HD8) Total Continuous Wattage 650 Watts Continuous Output Efficiency Certification 80 PLUS Bronze (Up to 85% Efficiency) Form Factor Compatibility Standard ATX (140 x 150 x 86 mm) Power Supply Modularity Fully Wired / Non-Modular Layout Modern Standards Compliance ATX 3.1 Ready / PCIe 5.1 Compliant Internal Fan Architecture 120 mm Low-Noise Hydraulic Bearing Fan Power Rail Design Robust Single +12V Rail (54.0A Output / 648W Capacity) Circuit Design Type DC-to-DC Module Structure with Active PFC Industrial Protections OVP, OCP, SCP, OPP, UVP (Over/Under Voltage, Short Circuit, Over Current) Fixed Cable Connectors 1x 24-Pin ATX / 2x 4+4 Pin EPS (CPU) / 1x 16-Pin 12V-2×6 (300W) / 2x 6+2 Pin PCIe / 3x SATA / 2x Molex SKU: n/a -
Networking Products, Computer Servers
MSI PRO B760M-E DDR4 Micro-ATX Motherboard (911-7D48-061)
Technical Specifications
Feature Specification Details Model SKU / Part Number MSI PRO B760M-E DDR4 Micro-ATX Motherboard (911-7D48-061) Chipset Core Intel B760 Chipset CPU Socket Architecture LGA 1700 (12th, 13th, and 14th Gen Intel Core, Pentium, Celeron) Form Factor Dimension Micro-ATX (200 x 236 mm) Memory Slots & Type 2x DDR4 Memory DIMM Slots (Dual Channel Architecture) Maximum RAM Capacity Up to 64 Gigabytes (64GB) Supported RAM Frequencies 4800(OC) / 4600(OC) / 4400(OC) / 3200 / 3000 / 2666 / 2133 MHz Graphics Expansion Slots 1x PCIe 4.0 x16 Slot (with Steel Armor) / 1x PCIe 3.0 x1 Slot Storage Ports (NVMe M.2) 2x M.2 Gen4 x4 Slots (Key M) Storage Ports (Legacy SATA) 4x SATA 6Gbps Ports Networking Interface 1x Realtek RTL8111H 1-Gigabit LAN Controller (10/100/1000 Mbps) Onboard Visual Outputs 1x HDMI 2.1 (4K @60Hz max resolution) / 1x VGA (D-Sub) Rear USB Interface Deck 2x USB 5Gbps (Type-A) / 4x USB 2.0 (Type-A) Internal USB Headers 1x USB 5Gbps Header (supports 2 ports) / 2x USB 2.0 Headers (supports 4 ports) SKU: n/a -
Computer Servers, Networking Products

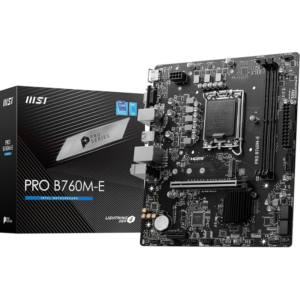

MSI PRO B760M-E DDR5 Micro-ATX Motherboard (911-7D48-071)
Technical Specifications
Feature Specification Details Model SKU / Part Number MSI PRO B760M-E DDR5 Micro-ATX Motherboard (911-7D48-071) Chipset Architecture Intel B760 Chipset Processor Socket Support LGA 1700 (Intel Core 12th, 13th, and 14th Gen, Pentium, Celeron) Motherboard Form Factor Micro-ATX (200 x 236.16 mm) Memory Slots & Interface 2x DDR5 DIMM Slots (Dual-Channel Memory Architecture) Maximum Memory Capacity Up to 128 Gigabytes (128GB) Supported RAM Speeds 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5200 / 4800 MHz Graphics Expansion Lanes 1x PCIe 4.0 x16 Slot (Steel Armor) / 1x PCIe 3.0 x1 Slot Storage Expansion Support 1x M.2 Gen4 x4 64Gbps Slot (Key M, 2242/2260/2280) / 4x SATA 6Gbps Ports Onboard Visual Engine 1x HDMI 1.4 (4K @30Hz max resolution) / 1x VGA (D-Sub) Integrated Audio Processing Realtek ALC897 Codec 7.1-Channel High Definition Audio Boost Wired Network Controller 1x Realtek RTL8111H 1-Gigabit Ethernet Controller (10/100/1000 Mbps) Rear External USB Array 2x USB 3.2 Gen 1 5Gbps Type-A / 4x USB 2.0 Type-A Internal USB Connectivity Headers 1x USB 3.2 Gen 1 Header (Supports 2 ports) / 2x USB 2.0 Headers (Supports 4 ports) SKU: n/a -
Networking Products, Computer Servers

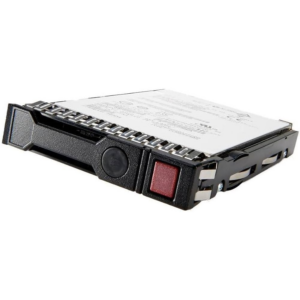

PE 1.92TB SATA 6Gbps Read Intensive SFF (2.5in) Basic Carrier Multi-Vendor SSD (P40499-B21)
Networking Products, Computer ServersPE 1.92TB SATA 6Gbps Read Intensive SFF (2.5in) Basic Carrier Multi-Vendor SSD (P40499-B21)
Technical Specifications
Feature Specification Details Model SKU / Factory Option Part PE 1.92TB SATA 6Gbps Read Intensive SFF (2.5in) Basic Carrier Multi-Vendor SSD (P40499-B21) HPE Alternate Spare Part Number P41524-001 Raw Storage Capacity 1.92 Terabytes (1,920 GB) Interface Protocol Speed SATA 3.0 (6 Gigabits per second) Physical Drive Form Factor 2.5-inch Small Form Factor (SFF) Carrier Frame Enclosure HPE Basic Carrier (BC Tray) Workload Classification Profile Read Intensive (RI Tier) Flash Memory Infrastructure Enterprise Triple-Level Cell (TLC) NAND Sequential Read / Write Performance Up to 520 MiB/s / Up to 470 MiB/s Random Read / Write IOPS (4KiB) 55,500 IOPS / 24,000 IOPS Endurance Rating (DWPD) 0.8 Drive Writes Per Day over 5 Years Total Lifetime Endurance (TBW) 2,400 Terabytes Written Maximum Power Draw 3.53 Watts (Maximum Sequential Write) Primary Platform Compatibility HPE ProLiant Gen10 Plus, Gen11, Gen12 Systems SKU: n/a
