Access Points
Showing 26–36 of 36 results
-
Networking Products, Access Points
Ubiquiti UniFi 7 Pro Max (U7-Pro-Max) WiFi 7 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) U7-Pro-Max (MPN: U7-PRO-MAX) WiFi Standards 802.11a/b/g/n/ac/ax/be (WiFi 6, 6E, WiFi 7) MIMO Configuration 2.4 GHz: 2×2; 5 GHz: 4×4; 6 GHz: 2×2 (DL/UL MU-MIMO) Max Data Rates 6 GHz: Up to 5.7 Gbps; 5 GHz: Up to 8.6 Gbps; 2.4 GHz: Up to 688 Mbps Networking Interface (1) 1/2.5 GbE RJ45 port Concurrent Clients 500+ active clients supported Coverage Area Up to $160\text{ m}^2$ ($1,750\text{ ft}^2$) Power Method & Consumption 802.3at PoE+, Max. 22W power consumption Management Interface Ethernet (UniFi Network application v8.2.93+) Dimensions & Weight $\varnothing206 \times 46\text{ mm}$ ($\varnothing8.1 \times 1.8\text{ inches}$); Weight: $680\text{ g}$ ($1.5\text{ lb}$) Operating Temperature $-30^\circ\text{C}$ to $60^\circ\text{C}$ ($-22^\circ\text{F}$ to $140^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: U7-PRO-MAX -
Access Points, Networking Products
Ubiquiti UniFi 7 Pro XG (U7-PRO-XG) – 6-Stream WiFi 7 Access Point
Access Points, Networking ProductsUbiquiti UniFi 7 Pro XG (U7-PRO-XG) – 6-Stream WiFi 7 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) U7-PRO-XG (MPN: U7-PRO-XG) WiFi Standards 802.11a/b/g/n/ac/ax/be (WiFi 6, 6E, WiFi 7) MIMO Configuration 2.4 GHz: 2×2; 5 GHz: 2×2; 6 GHz: 2×2 (DL/UL MU-MIMO) Max Data Rates 6 GHz: Up to 5.8 Gbps; 5 GHz: Up to 4.3 Gbps; 2.4 GHz: Up to 688 Mbps Networking Interface (1) 10/5/2.5/1 GbE RJ45 port (10 GbE max) Concurrent Clients 300+ active clients supported Coverage Area Up to $140\text{ m}^2$ ($1,500\text{ ft}^2$) Power Method & Consumption 802.3at PoE+, Max. 22W power consumption Management Interface Ethernet (UniFi Network application) Dimensions & Weight $\varnothing206 \times 32.5\text{ mm}$ ($\varnothing8.1 \times 1.3\text{ inches}$); Weight: $750\text{ g}$ ($1.7\text{ lb}$) Operating Temperature $-30^\circ\text{C}$ to $40^\circ\text{C}$ ($-22^\circ\text{F}$ to $104^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: U7-PRO-XG -
Networking Products, Access Points
Ubiquiti UniFi AC Mesh (UAP-AC-M) Wi-Fi 5 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) UAP-AC-M (MPN: UAP-AC-M) WiFi Standards 802.11a/b/g/n/ac (Wi-Fi 5) MIMO Configuration 5 GHz: 2×2 (DL MU-MIMO); 2.4 GHz: 2×2 (DL MU-MIMO) Max Data Rates 5 GHz: Up to 867 Mbps; 2.4 GHz: Up to 300 Mbps Networking Interface (1) 10/100/1000 Ethernet Port (GbE) Antenna Architecture (2) External Dual-Band Omni Antennas via RP-SMA connectors Antenna Gain 5 GHz: 4 dBi; 2.4 GHz: 3 dBi Concurrent Clients 200+ active clients supported Coverage Area Up to $140\text{ m}^2$ ($1,500\text{ ft}^2$) Power Method & Consumption 802.3af PoE or 24V Passive PoE, Max. 8.5W consumption Weatherproofing IPX4 rated (Indoor/outdoor weather-resistant) Management Interface Ethernet, Bluetooth (UniFi Network application) Dimensions & Weight $353 \times 46 \times 34.4\text{ mm}$ ($13.9 \times 1.8 \times 1.4\text{ inches}$); Weight: $152\text{ g}$ ($5.4\text{ oz}$) Operating Temperature $-30^\circ\text{C}$ to $70^\circ\text{C}$ ($-22^\circ\text{F}$ to $158^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: UAP-AC-M -
Networking Products, Access Points
Ubiquiti UniFi AC Mesh Pro (UAP-AC-M-PRO) Wi-Fi 5 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) UAP-AC-M-PRO (MPN: UAP-AC-M-PRO) WiFi Standards 802.11a/b/g/n/ac (Wi-Fi 5) MIMO Configuration 5 GHz: 3×3; 2.4 GHz: 3×3 (Simultaneous dual-band) Max Data Rates 5 GHz: Up to 1300 Mbps; 2.4 GHz: Up to 450 Mbps Networking Interface (2) 10/100/1000 Ethernet Ports Antenna Gain (3) Internal Dual-Band Antennas, 8 dBi each Wireless Range Up to $183\text{ m}$ ($600\text{ ft}$) omni coverage Concurrent Clients 200+ active clients supported Power Method & Consumption 802.3af PoE / Passive PoE ($44 – 57\text{V DC}$), Max. 9W consumption Weatherproofing Weather-resistant outdoor IP-rated enclosure Management Interface Ethernet (UniFi Network application) Dimensions & Weight $343.2 \times 181.2 \times 60.2\text{ mm}$ ($13.51 \times 7.13 \times 2.37\text{ inches}$); Weight: $633\text{ g}$ ($1.4\text{ lb}$) Operating Temperature $-40^\circ\text{C}$ to $70^\circ\text{C}$ ($-40^\circ\text{F}$ to $158^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: MPN: UAP-AC-M-PRO -
Networking Products, Access Points
Ubiquiti UniFi AC Pro (UAP-AC-PRO) Wi-Fi 5 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) UAP-AC-PRO (MPN: UAP-AC-PRO) WiFi Standards 802.11a/b/g/n/ac (Wi-Fi 5) MIMO Configuration 5 GHz: 3×3; 2.4 GHz: 3×3 (Simultaneous dual-band) Max Data Rates 5 GHz: Up to 1300 Mbps; 2.4 GHz: Up to 450 Mbps Networking Interface (2) 10/100/1000 Ethernet Ports Concurrent Clients 250+ active clients supported Wireless Range Up to $122\text{ m}$ ($400\text{ ft}$) Power Method & Consumption 802.3af/at PoE, Max. 9W power consumption Management Interface Ethernet (UniFi Network application) Dimensions & Weight $\varnothing196.7 \times 35\text{ mm}$ ($\varnothing7.74 \times 1.38\text{ inches}$); Weight: $350\text{ g}$ ($0.77\text{ lb}$) Operating Temperature $-10^\circ\text{C}$ to $70^\circ\text{C}$ ($14^\circ\text{F}$ to $158^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: UAP-AC-PRO -
Networking Products, Access Points
Ubiquiti UniFi U6+ (U6+) Ceiling-Mounted WiFi 6 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) U6+ (MPN: U6+) WiFi Standards 802.11a/b/g, WiFi 4, WiFi 5, WiFi 6 (ax) MIMO / Spatial Streams 5 GHz: 2×2 (DL/UL MU-MIMO); 2.4 GHz: 2×2 (DL/UL MU-MIMO) Max Data Rates 5 GHz: Up to 2.4 Gbps; 2.4 GHz: Up to 573.5 Mbps Networking Interfaces (1) 1GbE RJ45 port (GbE uplink) Power Method & Max Consumption PoE (44–57V DC), Max. 9W power consumption Concurrent Clients 300+ active clients supported Coverage Area Up to $140\text{ m}^2$ ($1,500\text{ ft}^2$) Management Interface Ethernet (UniFi Network application v7.3.76+) Dimensions & Weight $\varnothing160 \times 33\text{ mm}$ ($\varnothing6.3 \times 1.3\text{ inches}$); Weight: $338\text{ g}$ ($413\text{ g}$ with mount) Operating Temperature $-30^\circ\text{C}$ to $60^\circ\text{C}$ ($-22^\circ\text{F}$ to $140^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: U6+ -
Networking Products, Access Points
Ubiquiti UniFi U7 Outdoor (U7-Outdoor) WiFi 7 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) U7-Outdoor (MPN: U7-OUTDOOR) WiFi Standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) MIMO Configuration 5 GHz: 2×2 (DL/UL MU-MIMO); 2.4 GHz: 2×2 (DL/UL MU-MIMO) Max Data Rates 5 GHz: Up to 4.3 Gbps (BW240); 2.4 GHz: Up to 688 Mbps (BW40) Networking Interface (1) 1/2.5 GbE RJ45 port Antenna Architecture (1) Integrated Directional Internal Antenna & (2) Detachable External Omni Antennas (RP-SMA) Antenna Gain & Beamwidth 5 GHz: Directional 12.5 dBi ($45^\circ$), Omni 4 dBi; 2.4 GHz: Directional 8 dBi ($90^\circ$), Omni 3 dBi Concurrent Clients 250+ active clients supported Coverage Area Up to $465\text{ m}^2$ ($5,000\text{ ft}^2$) open space (Directional) Power Method & Consumption PoE+ (42.5–57V DC), Max. 19W power consumption Weatherproofing IPX6 (All-weather exposed outdoor layout) Management Interface Ethernet (UniFi Network application) Dimensions & Weight $170 \times 208 \times 54.5\text{ mm}$ ($6.7 \times 8.2 \times 2.1\text{ inches}$); Weight: $1.2\text{ kg}$ ($2.6\text{ lb}$) Operating Temperature $-30^\circ\text{C}$ to $60^\circ\text{C}$ ($-22^\circ\text{F}$ to $140^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: U7-OUTDOOR -
Networking Products, Access Points

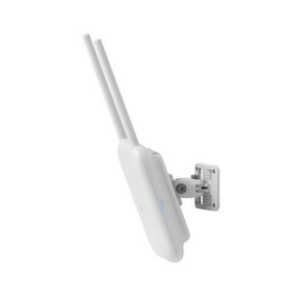

Ubiquiti UniFi U7 Pro Outdoor (U7-Pro-Outdoor) WiFi 7 Access Point
Networking Products, Access PointsUbiquiti UniFi U7 Pro Outdoor (U7-Pro-Outdoor) WiFi 7 Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) U7-Pro-Outdoor (MPN: U7-PRO-OUTDOOR) WiFi Standards 802.11a/b/g/n/ac/ax/be (WiFi 6, 6E, WiFi 7) MIMO Configuration 6 GHz: 2×2; 5 GHz: 2×2 (or up to 4×4 depending on profile); 2.4 GHz: 2×2 (DL/UL MU-MIMO) Max Data Rates 6 GHz: Up to 5.7 Gbps; 5 GHz: Up to 4.3 Gbps–8.6 Gbps; 2.4 GHz: Up to 688 Mbps Networking Interface (1) 1/2.5 GbE RJ45 port Antenna Architecture Directional internal antenna array & RP-SMA connectors for external omni/directional options Concurrent Clients 300+ active clients supported Coverage Area Up to $465\text{ m}^2$ ($5,000\text{ ft}^2$) open space coverage Power Method & Consumption PoE+ (42.5–57V DC), Max. 21W power consumption Weatherproofing IPX6 rated (IPX7 with included cable-gland door kit) Management Interface Ethernet (UniFi Network application v9.0.108+) Dimensions & Weight $170 \times 208 \times 66.5\text{ mm}$ ($6.7 \times 8.2 \times 2.6\text{ inches}$); Weight: $1.2\text{ kg}$ ($2.6\text{ lb}$) Operating Temperature $-30^\circ\text{C}$ to $60^\circ\text{C}$ ($-22^\circ\text{F}$ to $140^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: U7-PRO-OUTDOOR -
Networking Products, Access Points

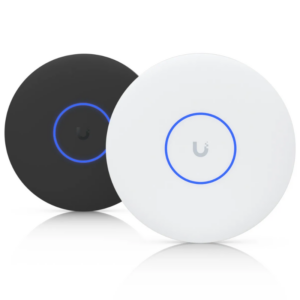

Ubiquiti UniFi WiFi 7 Lite (U7-Lite) Ceiling-Mounted Access Point
Key Technical Specifications
Feature Technical Specification Model / Part Number (SKU) U7-Lite (MPN: U7-LITE) WiFi Standards 802.11a/b/g/n/ac/ax/be (WiFi 7) MIMO Configuration 5 GHz: 2×2 (DL/UL MU-MIMO); 2.4 GHz: 2×2 (DL/UL MU-MIMO) Max Data Rates 5 GHz: Up to 4.3 Gbps (BW240); 2.4 GHz: Up to 688 Mbps (BW40) Networking Interface (1) 2.5 GbE RJ45 port Concurrent Clients 200+ active clients supported Coverage Area Up to $115\text{ m}^2$ ($1,250\text{ ft}^2$) Power Method & Consumption PoE (802.3af), Max. 13W consumption Management Interface Ethernet (UniFi Network application v9.0.114+) Dimensions & Weight $\varnothing171.5 \times 33\text{ mm}$ ($\varnothing6.8 \times 1.3\text{ inches}$); Weight: $313\text{ g}$ ($11\text{ oz}$) Operating Temperature $-30^\circ\text{C}$ to $40^\circ\text{C}$ ($-22^\circ\text{F}$ to $104^\circ\text{F}$) Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty SKU: U7-Lite -
Networking Products, Access Points
UniFi WiFi 7 Long-Range Access Point (U7-LR)
- System Feature / Interface Technical Specification
- StandardBrand / Manufacturer Ubiquiti Networks (UniFi Ecosystem)
- Model Designation SKU U7-LR (UniFi 7 Long-Range)
- Wireless Network Standard Wi-Fi 7 (802.11\text{be})
- Spatial Stream Configuration 5 Spatial Streams (Massive multi-user efficiency)
SKU: n/a
