Ubiquiti UniFi AC Mesh (UAP-AC-M) Wi-Fi 5 Access Point
,

Ubiquiti UniFi AC Mesh (UAP-AC-M) Wi-Fi 5 Access Point

Key Technical Specifications

Feature Technical Specification
Model / Part Number (SKU) UAP-AC-M (MPN: UAP-AC-M)
WiFi Standards 802.11a/b/g/n/ac (Wi-Fi 5)
MIMO Configuration 5 GHz: 2×2 (DL MU-MIMO); 2.4 GHz: 2×2 (DL MU-MIMO)
Max Data Rates 5 GHz: Up to 867 Mbps; 2.4 GHz: Up to 300 Mbps
Networking Interface (1) 10/100/1000 Ethernet Port (GbE)
Antenna Architecture (2) External Dual-Band Omni Antennas via RP-SMA connectors
Antenna Gain 5 GHz: 4 dBi; 2.4 GHz: 3 dBi
Concurrent Clients 200+ active clients supported
Coverage Area Up to $140\text{ m}^2$ ($1,500\text{ ft}^2$)
Power Method & Consumption 802.3af PoE or 24V Passive PoE, Max. 8.5W consumption
Weatherproofing IPX4 rated (Indoor/outdoor weather-resistant)
Management Interface Ethernet, Bluetooth (UniFi Network application)
Dimensions & Weight $353 \times 46 \times 34.4\text{ mm}$ ($13.9 \times 1.8 \times 1.4\text{ inches}$); Weight: $152\text{ g}$ ($5.4\text{ oz}$)
Operating Temperature $-30^\circ\text{C}$ to $70^\circ\text{C}$ ($-22^\circ\text{F}$ to $158^\circ\text{F}$)
Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty

KSh 18,200.00

Order Via WhatsApp

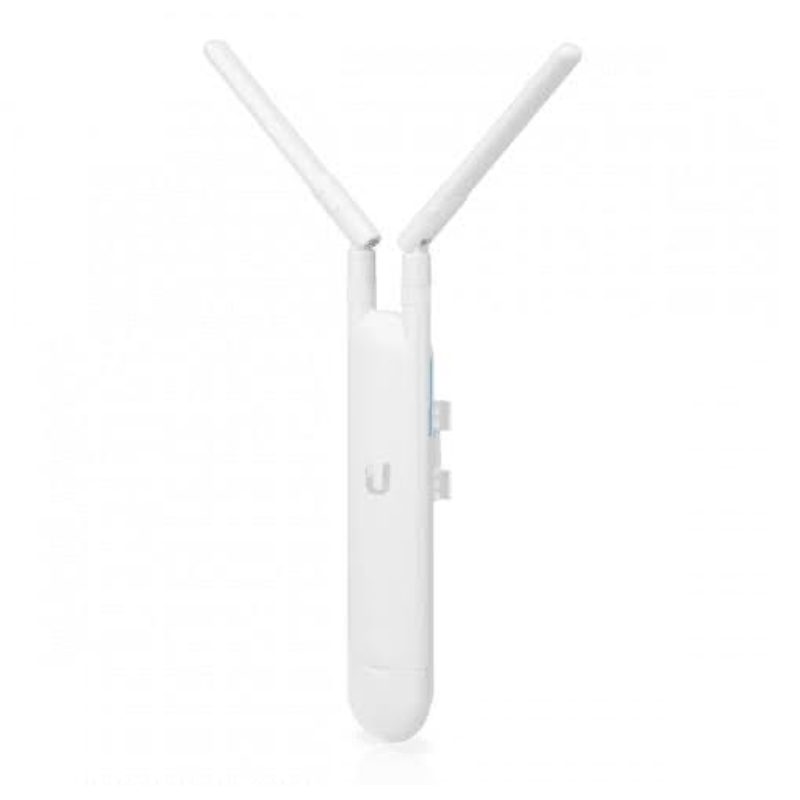

Ubiquiti UniFi AC Mesh (UAP-AC-M) – Indoor/Outdoor Wi-Fi 5 Access Point

The Ubiquiti UniFi AC Mesh (UAP-AC-M) is a high-performance, compact dual-band access point engineered to provide flexible wireless coverage and seamless meshing across challenging indoor and outdoor environments. Designed for deployment in open-air event spaces, school campuses, hospitality courtyards, and wide-area business perimeters, it features a discreet form factor combined with weather-resistant durability.

Utilizing simultaneous dual-band 2×2 MIMO technology, the UAP-AC-M achieves an aggregate data rate of up to 1167 Mbps—delivering up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. It is equipped with dual RP-SMA connectors that accommodate the included omni-directional antennas or optional specialized sector/directional antennas for customized pattern shaping. Supporting over 200 concurrent clients, power is flexibly supplied via 802.3af PoE or 24V passive PoE, with management handled centrally through the scalable UniFi Network application platform.

Key Technical Specifications

Feature Technical Specification
Model / Part Number (SKU) UAP-AC-M (MPN: UAP-AC-M)
WiFi Standards 802.11a/b/g/n/ac (Wi-Fi 5)
MIMO Configuration 5 GHz: 2×2 (DL MU-MIMO); 2.4 GHz: 2×2 (DL MU-MIMO)
Max Data Rates 5 GHz: Up to 867 Mbps; 2.4 GHz: Up to 300 Mbps
Networking Interface (1) 10/100/1000 Ethernet Port (GbE)
Antenna Architecture (2) External Dual-Band Omni Antennas via RP-SMA connectors
Antenna Gain 5 GHz: 4 dBi; 2.4 GHz: 3 dBi
Concurrent Clients 200+ active clients supported
Coverage Area Up to $140\text{ m}^2$ ($1,500\text{ ft}^2$)
Power Method & Consumption 802.3af PoE or 24V Passive PoE, Max. 8.5W consumption
Weatherproofing IPX4 rated (Indoor/outdoor weather-resistant)
Management Interface Ethernet, Bluetooth (UniFi Network application)
Dimensions & Weight $353 \times 46 \times 34.4\text{ mm}$ ($13.9 \times 1.8 \times 1.4\text{ inches}$); Weight: $152\text{ g}$ ($5.4\text{ oz}$)
Operating Temperature $-30^\circ\text{C}$ to $70^\circ\text{C}$ ($-22^\circ\text{F}$ to $158^\circ\text{F}$)
Warranty Coverage 1-Year Limited Manufacturer Hardware Warranty

What is in the Box

  • Ubiquiti UniFi AC Mesh Access Point Unit

  • (2) External Dual-Band Omni Antennas

  • Wall and Pole Mounting Kit

  • Quick Start Installation Guide

Ubiquiti UniFi AC Mesh Pros & Benefits

  • Modular External Antenna Design: RP-SMA interfaces allow you to swap standard omni antennas for high-gain sector or directional antennas to target specific coverage paths.

  • Flexible Weather-Sealed Build: Compact, weather-resistant layout accommodates exposed outdoor placement or discreet indoor mounting.

  • Effortless Wireless Meshing: Perfect for extending network coverage to hard-to-wire locations without pulling lengthy physical Ethernet lines.

  • Unified Network Control: Deep integration with the UniFi software controller for seamless guest portal management, traffic isolation, and fast roaming.

Pricing & Availability in Kenya

The Ubiquiti UniFi ACMesh is stocked by enterprise networking distributors, wireless system builders, and ICT equipment providers in Nairobi and commercial centers across Kenya.

  • Brand New Unit (SKU: UAP-AC-M): Typically ranges between KSh 14,000 and KSh 16,500 ($+ \text{VAT}$) depending on local distributor tiers and active shipping logistics.

Ubiquiti UniFi AC Verdict

The  Ubiquiti UniFi ACMesh (UAP-AC-M) remains a flexible, cost-effective outdoor and indoor wireless extension choice in Kenya for locations requiring reliable Wi-Fi 5 performance and adaptable antenna configurations.
