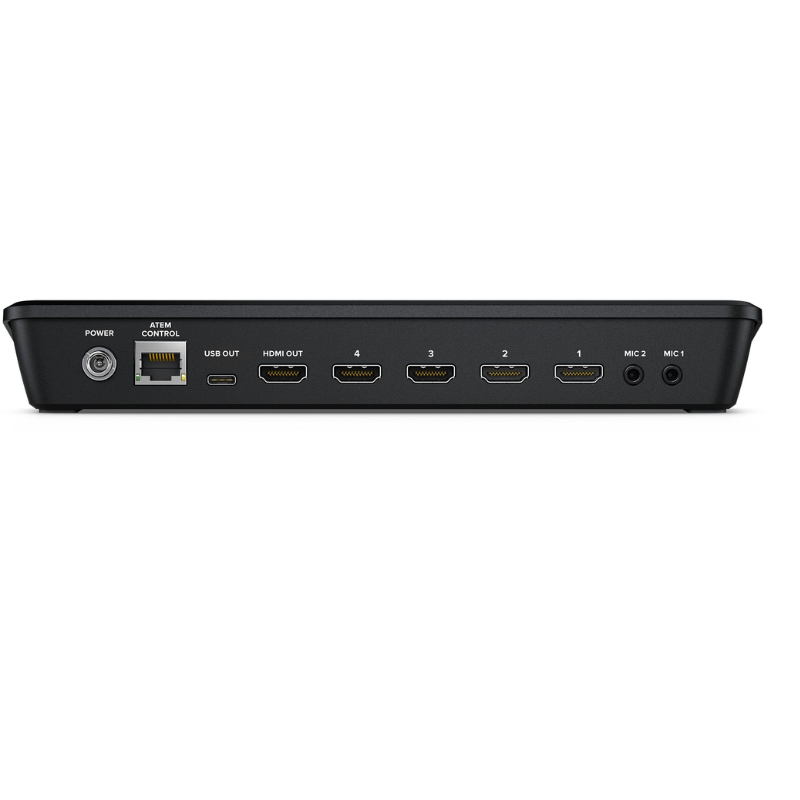

Blackmagic Design ATEM Mini Pro Live Production Switcher

Technical Specifications

  • Model-Blackmgic Design ATEM Mini Pro
  • Total Video Inputs 4 x HDMI Type-A (10-bit HD switchable) with Auto Frame Rate Conversion
  • Total Video Outputs 1 x HDMI (Assignable to Program, Preview, or Multiview), 1 x USB Type-C
  • Direct Live Streaming Built-in hardware streaming engine via RJ45 10/100/1000 Ethernet port
  • Direct Local Recording 1 x USB-C 3.1 Gen 1 expansion port for direct H.264 recording with AAC audio to external flash/SSD media
  • Video Production Standards Input/Output formats up to Full HD 1080p at 60 frames per second
  • Multiview Monitoring 1 x HDMI output displaying 4 cameras, Program, Preview, Streaming, and Recording status
  • Audio Interfaces 2 x 3.5mm Stereo Microphone Inputs, 11-Input x 2-Channel Mixer
  • Internal Audio Processing Fairlight mixer with Compressor, Limiter, Gate, and 6-Band Parametric EQ
  • Built-In Keyers 1 x Advanced Chroma Keyer (Green Screen), 1 x Downstream, 1 x Linear/Luma
  • Warranty Coverage 1-Year Limited Manufacantyturer Warranty

KSh 60,580.00

Order Via WhatsApp

Blackmagic Design ATEM Mini Pro Live Production Switcher

Take full control of your live broadcasts with the Blackmgic Design ATEM Mini Pro. Specifically engineered for independent livestreamers, corporate AV teams, houses of worship, and remote educators, this high-performance compact switcher replaces complex software setups with a fast, intuitive hardware control panel.

Featuring 4 independent HDMI inputs with automated standards conversion and re-synchronization, you can seamlessly integrate DSLR cameras, mirrorless bodies, computers, and media players without video artifacts or dropped frames. Backed by a secure 1-Year Warranty, it serves as the ultimate professional foundation for direct, hardware-based streaming to YouTube Live, Twitch, Facebook Live, and Zoom simultaneously.

Technical Specifications

Feature Specification
Total Video Inputs 4 x HDMI Type-A (10-bit HD switchable) with Auto Frame Rate Conversion
Total Video Outputs 1 x HDMI (Assignable to Program, Preview, or Multiview), 1 x USB Type-C
Direct Live Streaming Built-in hardware streaming engine via RJ45 10/100/1000 Ethernet port
Direct Local Recording 1 x USB-C 3.1 Gen 1 expansion port for direct H.264 recording with AAC audio to external flash/SSD media
Video Production Standards Input/Output formats up to Full HD 1080p at 60 frames per second
Multiview Monitoring 1 x HDMI output displaying 4 cameras, Program, Preview, Streaming, and Recording status
Audio Interfaces 2 x 3.5mm Stereo Microphone Inputs, 11-Input x 2-Channel Mixer
Internal Audio Processing Fairlight mixer with Compressor, Limiter, Gate, and 6-Band Parametric EQ
Built-In Keyers 1 x Advanced Chroma Keyer (Green Screen), 1 x Downstream, 1 x Linear/Luma
Warranty Coverage 1-Year Limited Manufacantyturer Warranty

 Blackmgic Design ATEM Mini Pro Pros & Benefits

  • Dedicated Hardware Streaming Engine: Save your computer’s processing power. The ATEM Mini Pro features an integrated hardware encoder that streams directly over its Ethernet connection, delivering stable data distribution without dropping frames.

  • Pro-Grade Multiview Monitor Output: Never fly blind during a live broadcast. The Pro model upgrades your workflow by allowing you to view all 4 camera inputs, audio meters, preview, program, and active streaming/recording statuses on a single external display.

  • Direct Flash Drive Recording: Eliminate the need for external capture cards. Plug a cost-effective external USB-C SSD or flash drive straight into the switcher to capture a broadcast-quality H.264 master file of your live event instantly.

  • Plug-and-Play Webcam Emulation: The flexible USB-C port functions as a generic webcam signal, letting you connect the switcher directly to Windows or macOS machines and pull multi-camera production feeds straight into Zoom, Microsoft Teams, or Skype.

 Blackmgic Design ATEM Mini Pro Suitable For

  • Independent Livestreamers & Content Creators looking to step up from unstable software switchers to a dedicated physical control panel for multi-cam YouTube and Twitch productions.

  • Corporate AV & Communication Teams coordinating high-quality remote webinars, multi-perspective product launches, and virtual investor updates.

  • Houses of Worship & Ministries broadcasting crisp multi-camera weekend services, virtual sermons, and live music directly to community members online.

  • Online Instructors & Remote Faculty switching dynamically between a face-cam, top-down demonstration cameras, and presentation slides during live digital lectures.

 Blackmgic Design ATEM Mini Pro Pricing & Variations

Switcher Model Configuration Condition Warranty Price (Est.)
Blackmagic Design ATEM Mini Pro (Standard) Brand New 1 Year $295
Blackmagic Design ATEM Mini Pro ISO (Adds 5 x Video Stream Recording) Brand New 1 Year $495

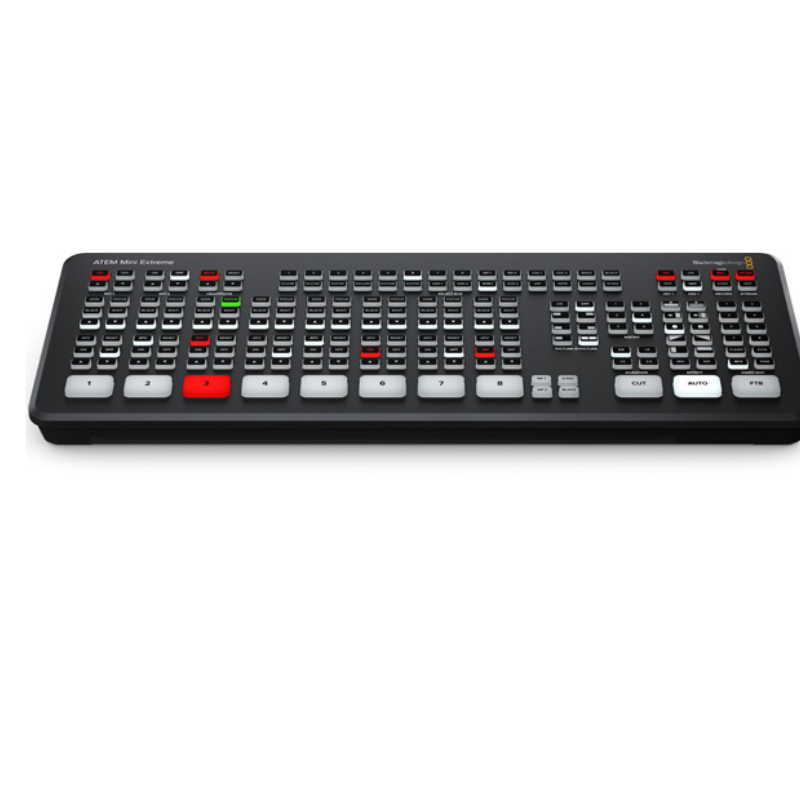

Blackmagic Design ATEM Mini Extreme (8-Input Expansion) Brand New 1 Year $995

 Blackmgic Design ATEM Mini Pro verdict

Blackmgic Design ATEM Mini Pro is a massive triumph in miniature broadcast engineering, providing a complete live production studio inside a portable, cost-effective form factor. By introducing a dedicated hardware streaming engine, direct USB recording, and comprehensive multiview monitoring over the standard model, it eliminates production bottlenecks and stands out as an irreplaceable asset for any serious content creator or digital broadcast team

Categories: ,

Technical Specifications

  • Total Video Inputs 4 x HD
  • type-A (10-bit HD switchable) with Auto Frame Rate Conversion
  • Total Video Outputs 1 x HDMI (Assignable to Program, Preview, or Multiview), 1 x USB Type-C
  • Direct Live Streaming Built-in hardware streaming engine via RJ45 10/100/1000 Ethernet port
  • Direct Local Recording 1 x USB-C 3.1 Gen 1 expansion port for direct H.264 recording with AAC audio
  • to external flash/SSD media
    Video Production Standards Input/Output formats up to Full HD 1080p at 60 frames per second
  • Multiview Monitoring 1 x HDMI output displaying 4 cameras, Program, Preview, Streaming, and
  • Recording status
  • Audio Interfaces 2 x 3.5mm Stereo Microphone Inputs, 11-Input x 2-Channel Mixer
  • Internal Audio Processing Fairlight mixer with Compressor, Limiter, Gate, and 6-Band Parametric EQ
  • Built-In Keyers 1 x Advanced Chroma Keyer (Green Screen), 1 x Downstream, 1 x Linear/Luma
  • Warranty Coverage 1-Year Limited Manufacturer Warranty
