Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor


Technical Specifications

Feature Specification Details
Model SKU / Product Code Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor
Screen Size & Aspect Ratio 15.6 Inches Diagonal / 16:9 Widescreen Framework
Native Screen Resolution 1920 × 1080 Pixels (Full HD)
Touchscreen Technology 10-Point Capacitive Multi-Touch (Zero Air Gap attachment / ≤10 ms response)
Panel Technology Profile IPS-Grade Backlit ELED with Anti-Glare Matte Surface (Haze 25% / 3H hardness)
Refresh Rate & Response Time Smooth 60 Hz Refresh Profile / 6 ms Grey-to-Grey Overdrive
Display Color Depth 16.7 Million Colors (6-bit + FRC architecture / 45% NTSC Gamut)
Static Contrast & Brightness 1000:1 Contrast Ratio / Balanced 250 cd/m² Luminance Output
Integrated Video Input Ports 2 x USB Type-C (Full-Function), 1 x HDMI 1.4 (Up to 1080p @ 60 Hz)
Integrated Audio Ports 1 x 3.5 mm Audio Output Jack
Internal Speaker Output Dual-Channel Multimedia Stereo Speakers (2 x 1 Watt configuration)
Power Management Spec 5 VDC, 3A via USB Power / Low-draw architecture (7.5W Typ. Consumption)
Mounting Standardization VESA Hole Pattern Compliant (75 mm × 75 mm setup)
Chassis Dimensions (W × H × D) 355.4 mm × 223.2 mm × 12.5 mm (Ultra-slim travel profile)
Net Structural Weight ~0.87 kg (Lightweight aluminum-alloy mobile construction)
Manufacturer Unit Warranty 1-Year Local Replacement Warranty

KSh 18,850.00

Order Via WhatsApp

Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor

Modern digital workspaces require direct, hands-on control, yet traditional traveling screens limit you to standard mouse tracking. The Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor breaks past these limitations, delivering an elite multi-touch secondary screen for interactive designers, remote executives, field specialists, and retail engineers. Built inside a highly durable, compact frame, this premium mobile display brings tablet-like interaction to a spacious 15.6-inch canvas. It slides easily into any standard laptop pack or briefcase, allowing you to establish a highly collaborative, touch-enabled dual-monitor station anywhere from a local coffee shop table to a remote field site.

The core feature of the PM16-F201SDT is its integrated 10-point capacitive multi-touch panel. Covered by a smooth, easy-to-clean glass layer, it supports intuitive smartphone gestures, fluid multi-finger zooming, scrolling, and instant document markups without needing a separate mouse. Equipped with dual full-function USB Type-C ports and a native HDMI slot, it synchronizes video feeds and touch control commands over a single cable on compatible Windows and Android systems. Furthermore, its intelligent architecture supports up to 45W reverse smart charging, allowing the monitor to pass power back from an attached wall adapter to keep your host laptop or smartphone fully charged during long presentations.

Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor Key Features & Product Highlights

  • Responsive 10-Point Multi-Touch: High-accuracy capacitive glass layer tracks up to ten simultaneous touch points, making it perfect for signature capture, presentation manipulation, and interface testing.

  • Vibrant Full HD IPS Panel: Renders sharp text strings and vivid colors across a native 1920 × 1080 canvas with uniform 178° viewing clarity that avoids color shift from side angles.

  • Dual Full-Function Type-C Nodes: Single-cable integration handles high-definition video data, multi-touch data streaming, and power sync concurrently to reduce desk clutter.

  • Up to 45W Smart Reverse Charging: Accepts power passthrough from an external wall unit to supply fast-charging current back to your modern laptop or smartphone.

  • Rugged Ultra-Thin Structure: Built with an aluminum-alloy rear housing that measures just 12.5 mm thick, ensuring rigidity and component safety while keeping total weight to a minimal 0.87 kg.

  • Acoustic Stereo Chambers: Houses twin 1W built-in micro-speakers to deliver clean standalone audio for web video calls, training tutorials, and multimedia playback.

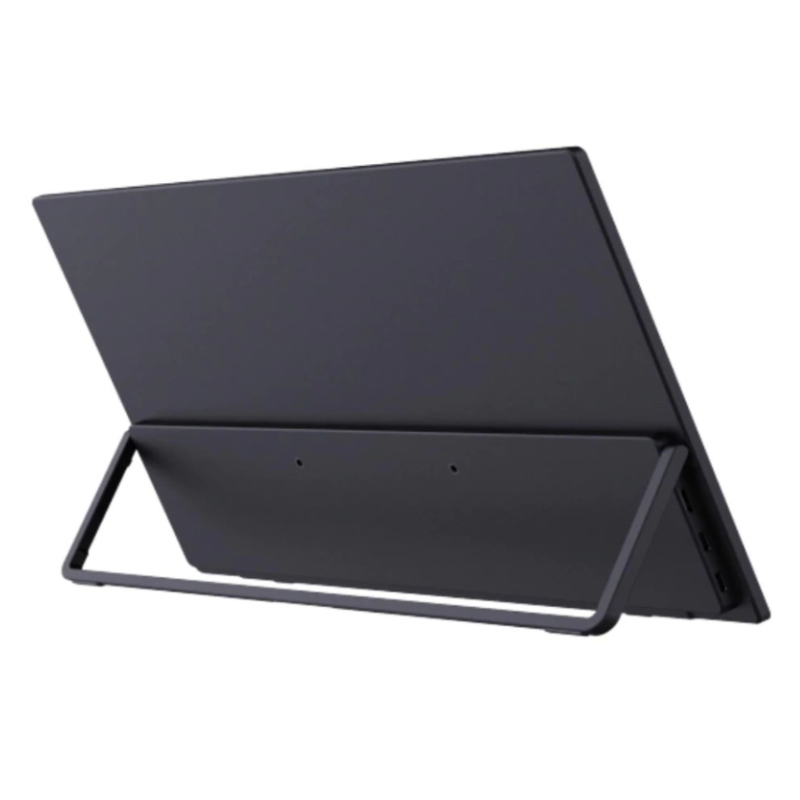

  • VESA Arm and Wall Ready: Outfitted with standard rear-mounted VESA 75 mm × 75 mm anchoring holes, allowing immediate connection to articulating desktop arms or fixed wall brackets.

Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor Technical Specifications

Feature Specification Details
Model SKU / Product Code Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor
Screen Size & Aspect Ratio 15.6 Inches Diagonal / 16:9 Widescreen Framework
Native Screen Resolution 1920 × 1080 Pixels (Full HD)
Touchscreen Technology 10-Point Capacitive Multi-Touch (Zero Air Gap attachment / ≤10 ms response)
Panel Technology Profile IPS-Grade Backlit ELED with Anti-Glare Matte Surface (Haze 25% / 3H hardness)
Refresh Rate & Response Time Smooth 60 Hz Refresh Profile / 6 ms Grey-to-Grey Overdrive
Display Color Depth 16.7 Million Colors (6-bit + FRC architecture / 45% NTSC Gamut)
Static Contrast & Brightness 1000:1 Contrast Ratio / Balanced 250 cd/m² Luminance Output
Integrated Video Input Ports 2 x USB Type-C (Full-Function), 1 x HDMI 1.4 (Up to 1080p @ 60 Hz)
Integrated Audio Ports 1 x 3.5 mm Audio Output Jack
Internal Speaker Output Dual-Channel Multimedia Stereo Speakers (2 x 1 Watt configuration)
Power Management Spec 5 VDC, 3A via USB Power / Low-draw architecture (7.5W Typ. Consumption)
Mounting Standardization VESA Hole Pattern Compliant (75 mm × 75 mm setup)
Chassis Dimensions (W × H × D) 355.4 mm × 223.2 mm × 12.5 mm (Ultra-slim travel profile)
Net Structural Weight ~0.87 kg (Lightweight aluminum-alloy mobile construction)
Manufacturer Unit Warranty 1-Year Local Replacement Warranty

Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor Pros & Cons

Pros

  • Intuitive Touch Navigation: Direct fingertip multi-touch interaction removes dependency on touchpads or external mice, boosting productivity in mobile environments.

  • Single-Cable Power and Touch: Transmits display information, touch tracking data, and system power over a lone Type-C cord to keep field workspaces tidy.

  • Convenient Reverse Charging: Smart 45W power passthrough keeps attached source hardware charged without taking up extra electrical wall sockets.

  • Premium Aluminum Shell: Robust metal rear housing offers exceptional protection against accidental bumps and twists during daily transport.

Cons

  • Device Touch Compatibility Limits: High-accuracy multi-touch capability requires hardware driver support, meaning full touch features function natively on Windows and Android but have limited gesture support on macOS.

  • Slightly Higher Weight Profile: Incorporating a capacitive touch glass layer and aluminum body brings total mass to 0.87 kg, making it slightly heavier than non-touch counterparts.

Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor Suitable Application Areas

  • Interactive Client Presentations: Ideal for field sales personnel, real estate consultants, and account executives who want clients to interact directly with slides, contracts, and software layouts.

  • Mobile Point-of-Sale & Kiosks: Serves as an excellent, space-saving customer-facing terminal or localized checkout register interface for temporary pop-up shops and boutique exhibition stands.

  • CCTV Staging & Testing Controls: Provides field security engineers with a rugged, interactive touch testing panel to manage Dahua NVR setting maps and adjust camera streams on site.

Portable Mobile Display Comparison

Monitor Model Code Touchscreen Support Chassis Material Native Input Matrix Reverse Charging Power Net Weight
Dahua Ultra-Thin (PM16-F201PD) No (Standard Display) Plastic Composite 1x HDMI, 1x VGA, 2x USB-C Up to 45W Passthrough 0.73 kg
Dahua Multi-Touch (PM16-F201SDT) Yes (10-Point Capacitive) Aluminum-Alloy 1x HDMI, 2x USB-C Up to 45W Passthrough 0.87 kg

Verdict

The Dahua PM16-F201SDT 15.6″ FHD Ultra-Thin Portable Touchscreen Monitor stands as an elite mobile display asset built for professionals who want to pair extensive screen real estate with direct, hands-on device control. By blending highly responsive 10-point capacitive touch, an enduring aluminum-alloy travel shell, and dual full-function Type-C nodes with reverse charging, it smoothly bridges the gap between desktop-level multitasking and mobile efficiency. For business leaders, field engineers, and digital specialists across Kenya looking to scale up their interactive productivity, this touchscreen Dahua model provides outstanding build quality, excellent port versatility, and long-term asset value.
