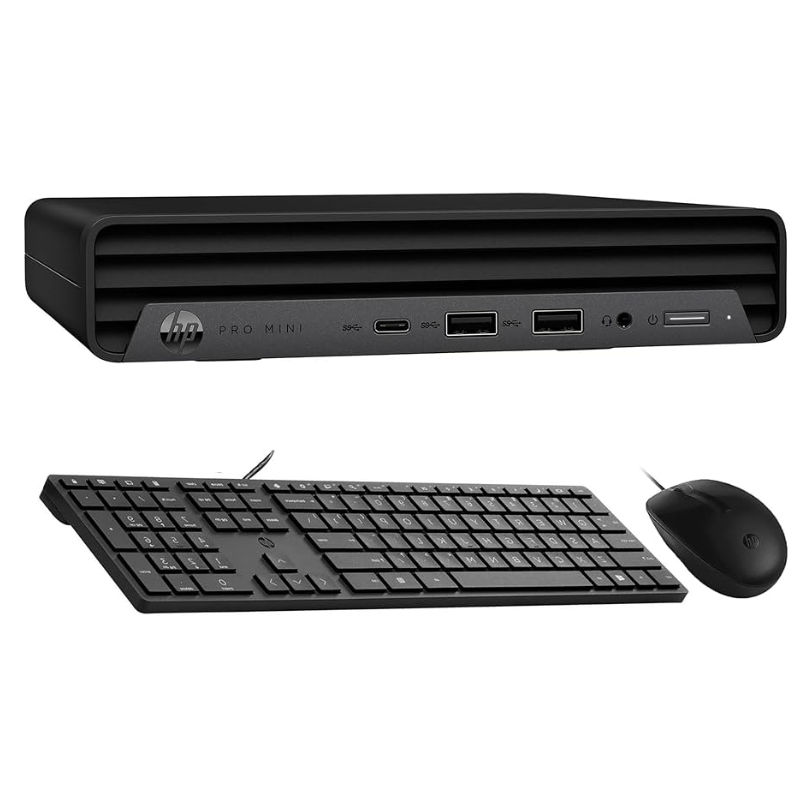

HP Pro Mini 400 G9 Core i7 Micro Desktop PC (B70XKAT)

The HP Pro Mini 400 G9 Desktop PC (B70XKAT) delivers commercial-grade, high-density performance in an ultra-small form factor (USFF) chassis. Engineered for space-constrained environments that require elite-tier computing power, this micro desktop eliminates desk clutter while matching the computational throughput of traditional full-sized towers.

Driven by the 14th Generation Intel Core i7-14700T processor, the system architecture features a hybrid 20-core design optimized for high-load multi-threaded calculations within a low-thermal, 35W power envelope. Paired with next-generation 8GB DDR5 RAM and a 512GB PCIe NVMe M.2 SSD, this mini PC provides the necessary performance overhead to process deep database indexes, dense financial sheets, and local software compilations smoothly.

HP Pro Mini 400 G9 Core i7 Micro Desktop PC (B70XKAT) Key Product Features

• 20-Core 14th Gen Intel Compute: Leverages the Intel Core i7-14700T ($20\text{ Cores} / 28\text{ Threads}$ up to $5.0\text{ GHz}$ Max Turbo) to handle intense multi-app execution and dense administrative workflows efficiently.

• Next-Gen DDR5 Architecture: Outfitted with high-bandwidth DDR5-4800 memory, delivering up to a 50% increase in data transfer rates over older DDR4 frameworks.

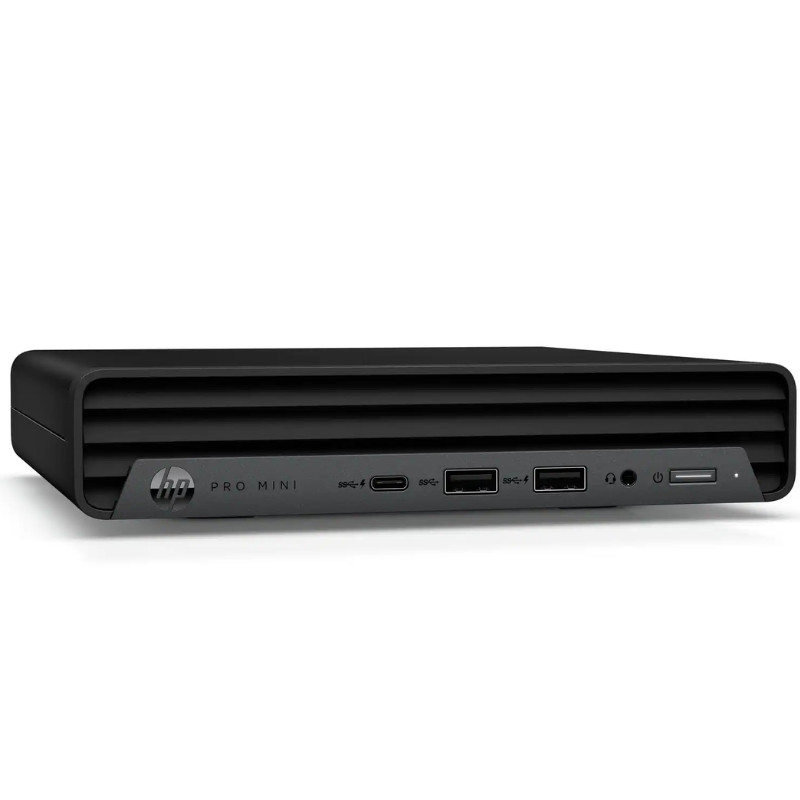

• 20Gbps SuperSpeed Connectivity: High-tier front interface includes a USB Type-C port pushing 20Gbps signaling rates alongside a dedicated 10Gbps Type-A fast-charging port.

• Triple Native Monitor Output: Rear-panel array features two DisplayPort 1.4 ports and one HDMI 2.1 interface to drive three independent high-resolution displays concurrently without a discrete graphics card.

• Enterprise Wireless Ecosystem: Includes an Intel Wi-Fi 6E AX211 (2×2) and Bluetooth 5.3 wireless card, unlocking the uncluttered 6GHz spectrum for rock-solid connection speeds in dense corporate networks.

HP Pro Mini 400 G9 Core i7 Micro Desktop PC (B70XKAT) Technical Specifications

HP Pro Mini 400 G9 Core i7 Micro Desktop PC (B70XKAT) Pros & Cons

Pros

• Massive multi-threaded muscle courtesy of the 20-core Intel Core i7 engine.

• Next-gen DDR5 memory lane boosts local data handling and database operations.

• Miniscule, space-saving footprint permits mounting behind screens or beneath counters.

• Natively feeds up to three separate independent digital monitors out of the box.

Cons

• Shipped bare with FreeDOS, necessitating a clean retail operating system installation upfront.

• The 8GB stock RAM baseline underutilizes the heavy computational depth of the 20-core i7 processor.

• 35W low-power “T” series CPU thermal limits prevent sustained heavy 3D asset rendering.

HP Pro Mini 400 G9 Core i7 Micro Desktop PC (B70XKAT) Suitable Application Areas

• Financial & Data Analytics Cubicles: Powers through heavy data macro parsing, localized data visualizations, and multi-spreadsheet cross-referencing.

• Media Production Control Rooms: Acts as a compact, silent monitor feed or communication engine backing up a multiple-display array.

• Space-Critical Corporate Workstations: Provides heavy executive-tier processing capacity for reception zones, medical carts, or remote branch offices.

Verdict

The HP Pro Mini 400 G9 (B70XKAT) is an exceptional engineering feat that packs an elite 20-core Intel Core i7 processor and advanced DDR5 architecture into a chassis roughly the size of a book. While it requires manual operating system deployment and an upfront RAM upgrade to fully exploit its processing engine, its incredible connectivity selection (including 20Gbps Type-C data lanes and triple display outputs) makes it a future-proof investment for modern workspaces that demand premium compute power in a minimal footprint.
